Monitoring Azure Data Factory, Self Hosted IR and Pipelines

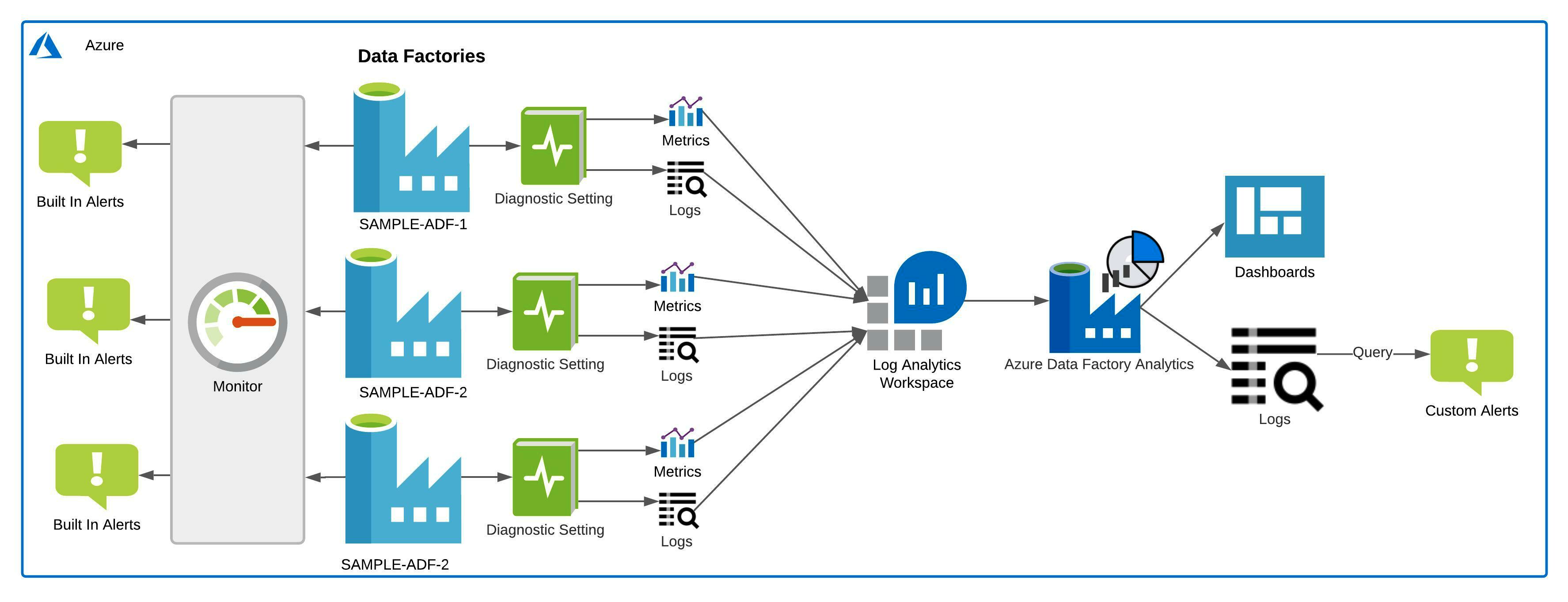

Architecture Diagram

For effectively monitoring ADF pipelines we are going to use Log Analytics, Azure Monitor and Azure Data Factory Analytics Solution. The above illustration shows the architectural representation of the monitoring setup.

The details of setting up log analytics, Alerts and Azure Data Factory Analytics Solution are further discussed in this section.


Send to Log Analytics

Use the below PowerShell Script to enable diagnostics settings for your Data Factories to write to Log Analytics Workspace. You can modify the Log and/or Metrics to be sent to Log Diagnostics in the below script. By default it will collect all metrics and logs and sync it to the Log Analytics Workspace.

Note: If you want to set the Destination Table to Resource Specific then you will have to update the setting in Diagnostic Settings. This script by default configures Log Analytics to write to AzureDiagnostics Table. Because an Azure log table can’t have more than 500 columns, I would highly recommend you select Resource-Specific mode.

#functions for formatting and logging
function Write-Status ($message) {Write-Host ("[$(get-date -Format 'HH:mm:ss')] $message.").PadRight(75) -NoNewline -ForegroundColor Yellow }
function Update-Status ($status = "Success") {Write-Host "[$status]" -ForegroundColor Green}
function Exit-Fail ($message) {
	Write-Host "`nERROR: $message" -ForegroundColor Red
	Write-Host "Result:Failed." -ForegroundColor Red
	exit 0x1
}
function NoExit-Fail ($message) {
	Write-Host "`nERROR: $message" -ForegroundColor Red
	Write-Host "Result:Continue." -ForegroundColor Red
}

Add-AzureRmAccount

Import-Module AzureRM

#Replace <<placeholder>> with actual azure details
$subscription_id = "<<Your Subscription ID>>"
$datafactory_resourcegroup_name = "<<Resource Group Name where Data Factories are hosted>>" #Change the Resource Name if your Data Factories exists in separate RG
$log_analytics_workspace_name = "<<Resource Group Name for OMS>>"
$datafactory_name = "<<Data Factory 1>>", "<<Data Factory 2>>"
$workspace_name = "<<Log Analytics Workspace Name>>"

foreach ($df in $datafactory_name){
    ##Generate the Resource IDs
    $diagnostic_setting_name = "$($df)_logdiagnostics"
    $resource_id = "/subscriptions/$subscription_id/resourceGroups/$datafactory_resourcegroup_name/providers/Microsoft.DataFactory/factories/$df"
    $workspace_id = "/subscriptions/$subscription_id/resourcegroups/$log_analytics_workspace_name/providers/microsoft.operationalinsights/workspaces/$workspace_name"
    try{
        Write-Status "Enabling Log Diagnostics for $df ADF."
        Set-AzureRmDiagnosticSetting -Name $diagnostic_setting_name -ResourceId $resource_id -MetricCategory AllMetrics `
                                     -Categories ActivityRuns, PipelineRuns, TriggerRuns, SSISPackageEventMessages, SSISPackageExecutableStatistics, `
                                     SSISPackageEventMessageContext, SSISPackageExecutionComponentPhases, SSISPackageExecutionDataStatistics, `
                                     SSISIntegrationRuntimeLogs -Enabled $true -WorkspaceId $workspace_id -ErrorAction Stop | Out-Null
        Update-Status
    }
    catch{
        NoExit-Fail $_.Exception.Message
    }
}

Azure Data Factory Analytics solution

For monitoring and analyzing data factory pipelines I would recommend installing Azure Data Factory Analytics solution from Azure Marketplace. This solution provides you a summary of overall health of your Data Factory, with options to drill into details and to troubleshoot unexpected behavior patterns. Details on how to configure Azure Data Factory Analytics Solution from Azure Marketplace can be found here. Ensure that you have the Log Analytics enabled as discussed in the previous section. Azure Data Factory Analytics Solution can help monitor cross data factories. You can enable diagnostic settings for Data Factories and have them all write to one Log Analytics Workspace and create this service pack with that Log Analytics Workspace and it acts as your single glass of pane for visualizing and analyzing all your data factories.

Azure Data Factory Analytics Solution gives you a pre-build dashboard for all your data factories. This dashboard gives you detailed information like,

  1. Your Pipeline runs.
  2. Your Activity runs.
  3. Your Trigger runs.
  4. Top 10 ADF errors
  5. ADF Statistics etc.

Customized Alerts: You can also explore the results on the dashboard and navigate to its log analytics query and create customized alerts on those queries as well.

You can also edit existing workbooks and create your own workbooks as well to create customized dashboards for data factories. The solution is in preview as of the writing of this blog but still provides very useful historical information.


Monitor using the Gantt View

Within the Data Factory Studio you can use Gantt views to quickly visualize your pipelines and activity runs.

You can find very useful information about job runtime when you hover over to one bars in the view:

This will help you estimate the duration of the job and trace your activity times for the pipeline and further help tune you pipelines in ADF.


Setup ADF Alerts

I would recommend to at least create the alerts on the following metrics to monitor ADF.

S.No.Metric NameAggregation TypeThreshold
1.Failed pipeline runs metricsTotalCount of 1
2.Failed trigger runs metricsTotalCount of 1
3.Integration runtime CPU utilizationAverage80 Percent

I have created some automation scripts to create these alerts with meaningful names and required parameters.The code can be found in this public GIT Repository.

Steps by Step Approach to create ADF Alerts

  1. Open a command prompt and clone the repository
git clone https://github.com/sa-proj/total-practice.git
  1. Navigate to <Git Repo Location>\total-practice\azure-datafactory-monitoring\ADF-Alerts\ Folder.
  2. Right Click and Edit ADFAlertDeploy.ps1 file. This should open the file in PowerShell ISE.
  3. Add your Deployment Location\Region and Resource Group in the first 2 lines of the script.
$resource_group_name = "<<Enter the Resource Group Name to create the deployment>>"
$location = "<<Enter Azure Location>>"
$deployment_time = Get-Date -Format yyyyMMddHHmmss
$deployment_name = "adfdeployment" + "-" + $deploymentTime
$template_failedpipeline_file = (Get-Location).Path + "\" + "template.failedpipeline.json"
$template_failedtrigger_file = (Get-Location).Path + "\" + "template.failedtrigger.json"
$template_irhighcpu_file = (Get-Location).Path + "\" + "template.ircpuhigh.json"
$param_file = (Get-Location).Path + "\"  + "parameter.json"
New-AzureRmResourceGroupDeployment -Name $deployment_name -ResourceGroupName $resource_group_name -TemplateFile $template_failedpipeline_file -TemplateParameterFile $param_file
New-AzureRmResourceGroupDeployment -Name $deployment_name -ResourceGroupName $resource_group_name -TemplateFile $template_failedtrigger_file -TemplateParameterFile $param_file
New-AzureRmResourceGroupDeployment -Name $deployment_name -ResourceGroupName $resource_group_name -TemplateFile $template_irhighcpu_file -TemplateParameterFile $param_file
  1. Now navigate to the parameter.json file and update the Data Factory Name and Email Address for Action Group.
{
    "$schema": "https://schema.management.azure.com/schemas/2019-04-01/deploymentParameters.json#",
    "contentVersion": "1.0.0.0",
    "parameters": {
        "dataFactoryName": {
            "value":"ir-sandeep-arora-demo2"
        },
        "actionGroupName": {
            "value": "adf-alertActionGroup"
        },
        "actionGroupShortName": {
            "value": "adf-alerts"
        },
        "emailReceivers": {
            "value": [
                {
                    "name": "recipient name",
                    "emailAddress": "hello@sandeep-arora.com",
                    "useCommonAlertSchema": true
                }
            ]
        },
        "enableAlert": {
            "value": true
        }
    }
}
  1. Then execute the ADFAlertDeploy.ps1 script which will create the following
    • Action Group with Name adf-alertActionGroup and short name adf-alerts. If you need to change the names you can do so in the parameter.json file. They are highlighted in purple in the above code illustration. This action group will execute email action when an alert will be triggered.
    • Create 3 Alerts in the specified Data Factory Name.
NameConditionStatus
alertwhenadfirCPUhighWhenever the average
[integrationruntime cpupercentage]
is greater than 80
Enabled
alertwhenadfpipelinefailedWhenever the total [pipelinefailedruns] is greater than 1Enabled
alertwhenadftriggerfailedWhenever the total [triggerfailedruns] is greater than 1Enabled
  1. In order to create the same alerts for different Data Factory you will have to update the parameters file again with your data factory name and then you can submit the deployment again. This will create new  alerts on that data factory, same as mentioned in the 6 steps.

The created alerts should appear under data factory alerts as seen below:


Self Hosted IR – Custom Dashboards

How do we know if there are some bottlenecks with Self Hosted Integration runtime? There are 4 metrics that can help you measure the performance or your hosted IRs.

  1. Average Integration runtime CPU utilization – Average CPU utilization of nodes in IR. A threshold continuous breaching 80% mark indicates a serious CPU bottleneck.
  2. Average Integration runtime available memory – Average memory available on the nodes. A lower value indicates memory congestion.
  3. Average Integration runtime queue length – Average number of pipelines or activity runs in a queue. A higher count indicates IR resource congestion\bottleneck.
  4. Average Integration runtime queue duration – Average Amount of time the job waits in the job before it gets scheduled. Higher values indicate congestion.

To understand the usage of these metrics over a period of time we need to set up a dashboard in Azure and explore these metrics over a period of time. Use the sample dashboard here and import it into your Azure Portal Dashboards to monitor all these metrics in one place using charts (for each of the listed metrics above). To get started, download the JSON file from GIT. Once downloaded, update the file for following placeholders using find and replace in the text editor.

<<Subscription ID>> – Your Subscription ID.

<<Resource Group Name>>  – Resource Group Name for Data Factories.

<<Data Factory Name>>  – Name of Data Factory (Only 1 is supported per dashboard)

Once the file is updated you can navigate to dashboards in Azure Portal.

and upload the json file you updated in the previous step.

This should set up your ADF dashboard and you monitor the metrics based on duration. This dashboard will help you understand if there are any bottlenecks in your ADF. Following is what the dashboard looks like when imported successfully.

Note: For multiple data factories you will need to create multiple dashboards. The dashboards are named after Data Factory names for ease of identifying the factory.


Log Pipeline State to SQL Server Database Table

You will need the table schema and stored procedure to log the pipeline state to a custom table. Use the following SQL Script to create the required database objects in your monitoring database.

/****** Object:  Table [dbo].[pipeline_data_logs]    Purpose: Table Schema to Store Pipeline Logs ******/
CREATE TABLE [dbo].[adf_pipeline_data_logs](
    [datafactoryname] [varchar](255) NULL,
    [pipelinename] [varchar](255) NULL,
	[pipelinerunid] [varchar](255) NULL,
	[activityname] [varchar](255) NULL,
	[rundate] [datetime] NULL,
	[action] [varchar](20) NULL,
    [errormessage] [varchar](1000) NULL
) ON [PRIMARY]
GO

/****** Object:  Stored Procedure [dbo].[usp_pipeline_data_logs]   Purpose: SP to be called from ADF to populate the table ******/
CREATE procedure [dbo].[usp_adf_pipeline_data_logs] (@datafactoryname varchar(255)
   @pipelinename varchar(255) ,
    @pipelinerunid varchar(255),
	@activityname varchar(255) ,
	@rundate datetime ,
	@action varchar(20),
    @errormessage varchar(1000))
AS
insert into full_dataload_logs values (@datafactoryname,
    @pipelinename,
    @pipelinerunid,
	@activityname,
	@rundate,
	@action,
    @errormessage)
GO

Now add failed and success steps to your pipeline for each activity as shown below:

  1. The step on the left is a dummy step to showcase how append write logs steps to call the stored procedure to add logs to the database.
  2. If you only want the logs for error message then you can skip the [Step_Success_Write_DB] step.
  3. For writing failure messages make sure you select Change To: Failure for the arrow to the next step to be executed upon failure.

4. See the settings below for stored procedure that is called to write logs to DB and values to parameters passed to stored procedures

  • The import button under stored procedures parameters should bring in all parameters stored procedure is expecting.
  • For Failed Step hardcode Failed for action and for Success Step hardcode Success for action.
  • Make sure to update the activity name in the parameter. In my sample pipeline the last activity name executed before this step was dummy_step.
  • errormessage parameter for success step will be set to NA (hardcoded) because the step didn’t fail.

Note: You can add more columns and log more details but these are minimum you should log to track failure and success status for pipelines and their activities.

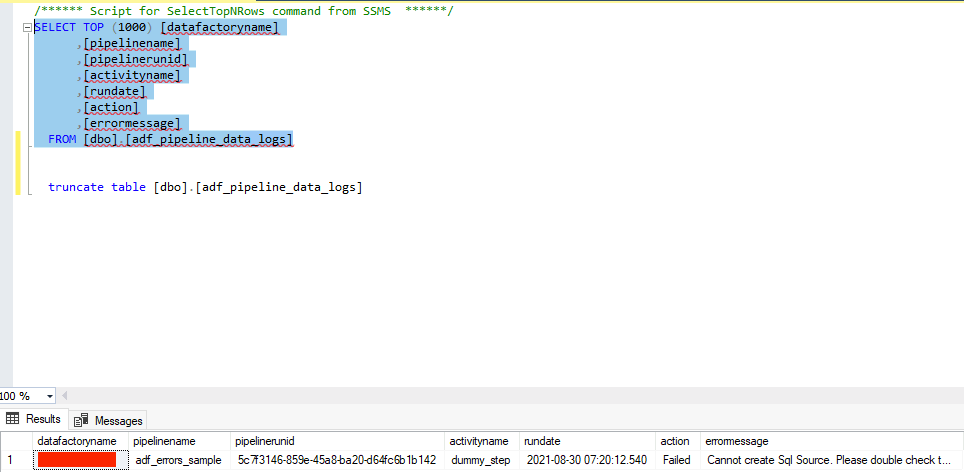

5. After I debug the pipeline and let the step (dummy_step) fail on purpose I can see the logs added to the table in SQL database.


Well now you know enough to monitor Azure Data Factory, Self Hosted integration runtime environments and your ADF pipelines. Feel free to shoot me a message if you think I have missed something or if you improve upon any of my suggestions for monitoring ADF.
