Automated Database Backups for Cloud Spanner using Terraform

This post shows how to use cloudspannerecosystem/scheduled-backups to configure scheduled backups for your cloud spanner database. The setup of the required resources (cloud scheduler, pub\sub and cloud function) will be done by using terraform in this tutorial.

The Architecture is as follows:

We will provision the following GCP services using terraform:

  • Cloud Scheduler: trigger tasks with a cron-based schedule. You can modify this schedule in the terraform template
  • Cloud Pub/Sub: a queue where Cloud Scheduler will publish a message to pub\sub to trigger the [SpannerCreateBackup] cloud function
  • Cloud Function: function that will start an operation to create a Cloud Spanner database backup
  • Service Account: service account that will grant Cloud function permissions to create a backup for spanner database
  • Cloud Storage: Bucket where the backup function will be zipped and pushed and then deployed to the cloud function

Prerequisites

You will need following resources provisioned before proceeding

  1. You must have terraform installed and configured on you workstation/laptop. Alternatively you can also use Cloud Shell to provision the resources using terraform. I am going to use my local machine to call terraform to create GCP resources
  2. You will need a Google Cloud Project
  3. You will need to make sure that API for Cloud Scheduler, Spanner, Pub\Sub and Cloud Functions is enabled
  4. You will need Google Cloud SDK installed on you local machine
  5. You will need a Spanner instance and database in the GCP project you intend to use. You can also checkout the spanner terraform modules to create the spanner instance and database(s)
  6. Terraform will need a service account key file that will provision required resources. Use the following code block to create the service account and assign it Owner role to the project and generate the key file. This key file will be used by terraform to provision required resources in your GCP Project
gcloud iam service-accounts create terraform --display-name terraform
export sa_terraform=$(gcloud iam service-accounts list --filter="displayName:terraform" --format='value(email)')
export PROJECT=$(gcloud info --format='value(config.project)')
gcloud projects add-iam-policy-binding $PROJECT --role roles/owner --member serviceAccount:$sa_terraform
gcloud iam service-accounts keys create ~/key.json --iam-account $sa_terraform

You can also use the GUI to create the service account and download the key file. Rename the <service-account>.json file to key.json file because that is what the provider will be expecting by default.


Backup Scheduler Module

The backup scheduler module consists following resources

  • A Service Account name backup_sa that will have permissions to create a cloud spanner database backup. Cloud function will use this service account permissions to send instructions to spanner to create database backup
//Service Accounts

resource "google_service_account" "backup_sa" {
  account_id   = "backup-sa"
  display_name = "Spanner Backup Function Service Account"
}

resource "google_project_iam_member" "backup_sa_spanner_iam" {
  project = var.gcp_project_id
  role    = "roles/spanner.backupWriter"

  member = "serviceAccount:${google_service_account.backup_sa.email}"
}
  • A Pub\Sub topic with default name set in the variables.tf file to cloud-spanner-scheduled-backups. This is where cloud scheduler will publish the message to trigger the cloud function and create a spanner database backup
// PubSub

resource "google_pubsub_topic" "backup_topic" {
  project = var.gcp_project_id
  name = var.pubsub_topic
}
  • A Cloud Scheduler job named spanner-backup-job to publish a message to pub\sub topic
resource "google_cloud_scheduler_job" "backup_job" {
  region      = var.region
  project     = var.gcp_project_id
  name        = "spanner-backup-job"
  description = "Backup job for main-instance"
  schedule    = var.schedule
  time_zone   = var.time_zone

  pubsub_target {
    topic_name = google_pubsub_topic.backup_topic.id
    data       = var.pubsub_data
  }
  depends_on = [google_pubsub_topic.backup_topic]
}

The message send to pub\sub is as follows. This is passed from the main.tf when assigning a value to module variable – var.pubsub_data

'{"database":"projects/[PROJECT_ID]/instances/[INSTANCE_ID]/databases/[DATABASE_ID]", "expire": "6h"}'
  • A Cloud Function SpannerCreateBackup that will get the database id from pub\sub message and pass instructions to cloud spanner to create a database backup. The function source is located here and zipped and uploaded to a cloud storage bucket created as part of the terraform module. You can expect to see a bucket with name {“Your Project ID”}-gcp-ssb-source. The source files for the backup function has been taken from cloudspannerecosystem/scheduled-backup. The cloud function will use pub\sub backup topic as trigger. The cloud function is configured to use the backup_sa service account
resource "google_cloudfunctions_function" "spanner_backup_function" {
  name = "SpannerCreateBackup"
  project = var.gcp_project_id
  region = var.region
  available_memory_mb = "256"
  entry_point = "SpannerCreateBackup"
  runtime = "go113"
  event_trigger {
    event_type = "google.pubsub.topic.publish"
    resource   = google_pubsub_topic.backup_topic.id
  }
  source_archive_bucket = google_storage_bucket.bucket_gcf_source.name
  source_archive_object = google_storage_bucket_object.gcs_functions_backup_source.name
  service_account_email = google_service_account.backup_sa.email
  depends_on = [google_pubsub_topic.backup_topic]
}

Implementation

The required module and template are available here.

a) Clone the repository to your local machine

git clone https://github.com/sa-proj/proj-tf-gcp.git

b) Navigate to the the proj-tf-spanner-backups folder

cd proj-tf-gcp/proj-tf-spanner-backups

c) Copy the key.json file generated for service account to this directory

d) Update the terraform.tfvars file. You are expected to provide your GCP Project ID, spanner instance ID, database name that you wish to configure scheduled backups, the region where resources will be created and the backup cron job schedule

//Enter your project ID
gcp_project_id  = "Your Project ID"
//Enter Spanner Instance ID where you database is located that you want to backup
spanner_instance_id = "spanner-1"
//Enter Spanner Database name you want to backup
spanner_database_id = "sample"
//Enter the GCP region name
region = "us-central1"
//Enter the schedule on which you want to call the cloud scheudler job. The below is set to run every 1 hour
schedule = "0 * * * *"

e) Initialize the working directory

terraform init

f) Verify the execution plan

terraform plan

e) Execute the actions proposed in the Terraform plan

terraform apply --auto-approve

Testing the Solution

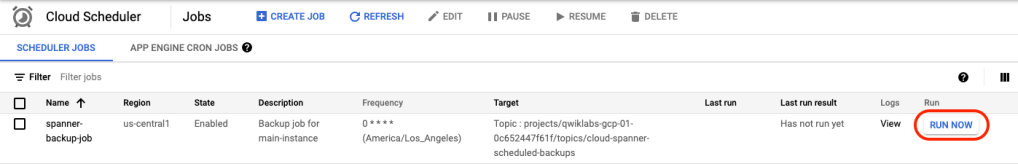

a) Navigate to the Cloud Scheduler Console and execute your job manually by clicking on RUN NOW

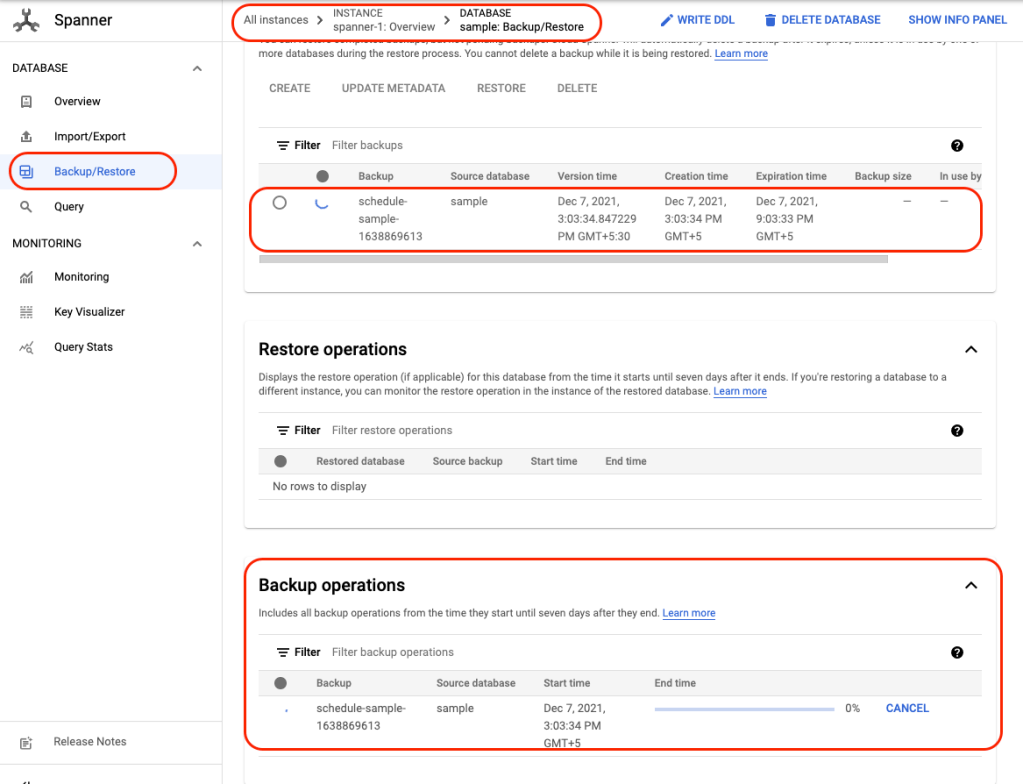

b) Navigate to Spanner console and Backup/Restore tab you should see that a backup operation in progress

c) In case there are any errors you can look at cloud function logs to find out what caused the backup failure


Monitoring and Logging

I will work on a separate post for monitoring of spanner instance and spanner database automated backups. In case you want to explore the monitoring solution for spanner using Cloud Monitoring currently in development you can do that by using and reviewing code base here.


Cleaning Up

Once you are done you can use the terraform destroy command to cleanup all the resources created by terraform.

terraform destroy

Congratulations! you have learnt how to automate and schedule backups for spanner database(s) using terraform.
